Corrugated

Overview

A familiar profile in a more refined material.

Corrugated zinc takes a recognizable panel form and gives it a distinctly architectural character. Its clean geometry works across contemporary, industrial, civic, residential, and adaptive reuse projects while zinc adds long-term material depth and a naturally evolving finish.

• Broad design flexibility

  Use Corrugated across full facades, accent areas, roof forms, soffits, and other architectural surfaces where a strong but uncomplicated panel expression is needed.

• Made for custom conditions

  Panels can be fabricated to suit project-specific dimensions, transitions, openings, and edge conditions, helping the system integrate cleanly with the surrounding envelope.

• A material that evolves

  Architectural zinc develops a protective patina over time, allowing the surface to mature naturally while maintaining its distinctive metallic character.

Simple form. Strong architectural presence.

Corrugated does not rely on complex panel geometry to make an impact. Its strength comes from proportion, repetition, material selection, and how the system is integrated into the building as a whole.

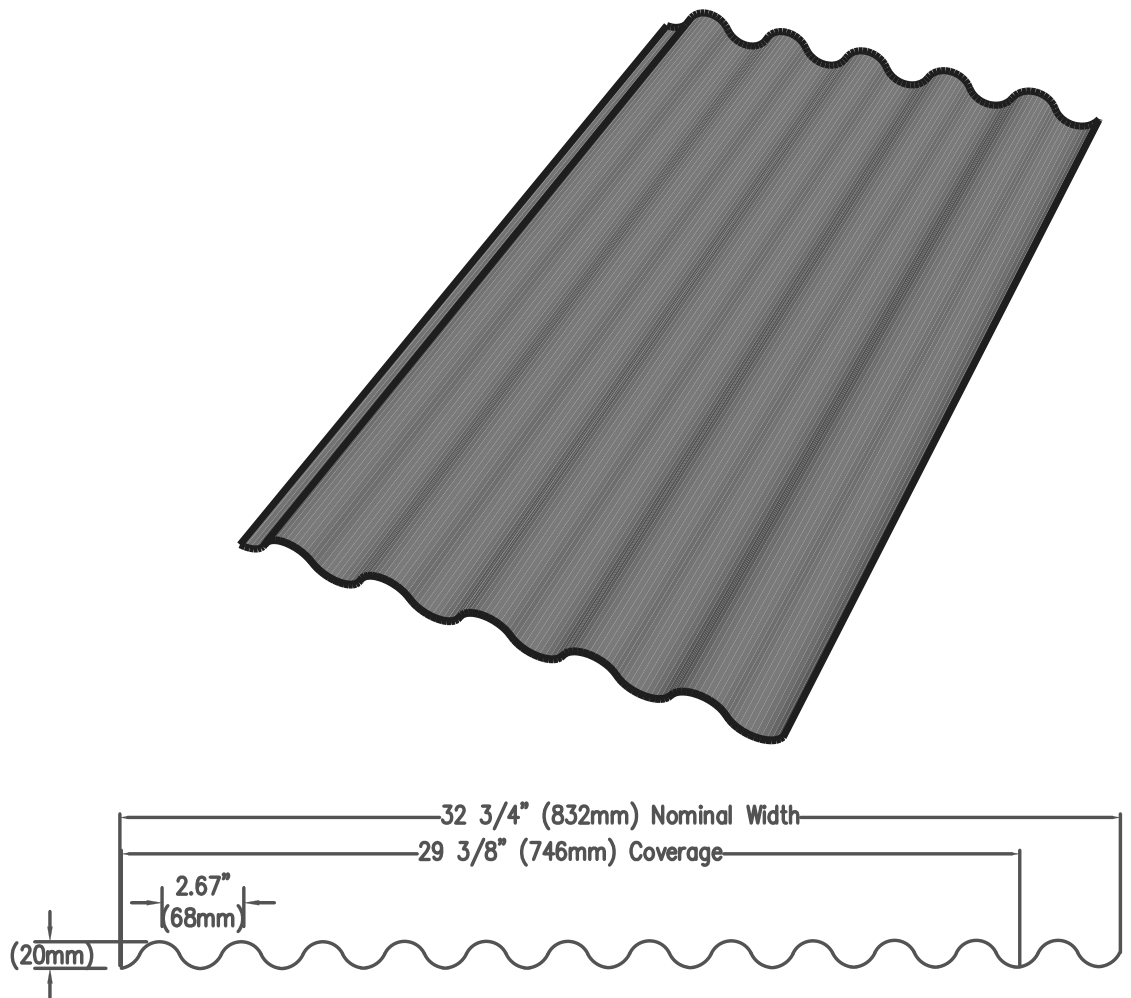

System Specifications

Material

Architectural zinc

Thickness

0.8 mm, 1.0 mm

Dimensions

10' × 32-3/4" × 7/8"

Rib spacing

2.67"

Maximum length

12'-0"

Coverage

23.2 sq ftWall. 21.98 sq ft on roof

Orientation

Horizontal, vertical

Radius

Concave, convex

Perforated

Available

Attachment

Exposed fastener

On center

9'

Finishes

Corrugated is fabricated from architectural zinc coil, giving you access to finish options from VMZINC, NedZink, and elZinc without changing the panel system. Select a finish below to preview it or order a sample.

Finish swatches are approximate. Appearance can vary by coil and will continue to develop as the zinc weathers. Specify from physical samples.Request finish samples

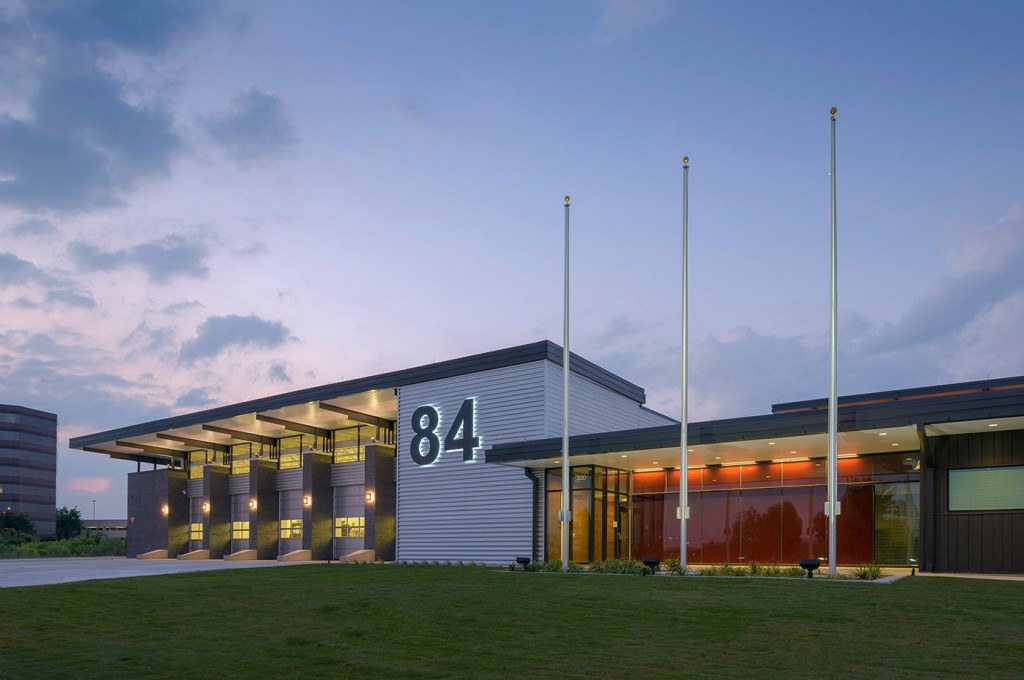

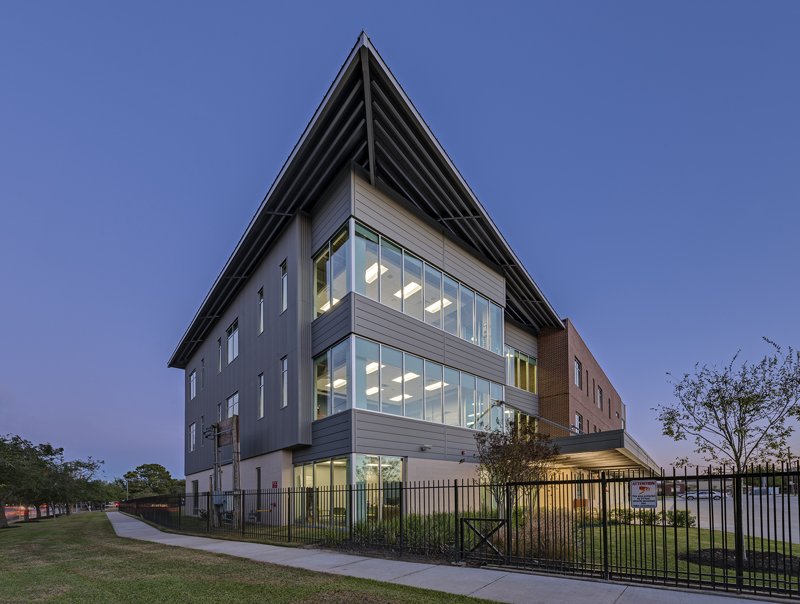

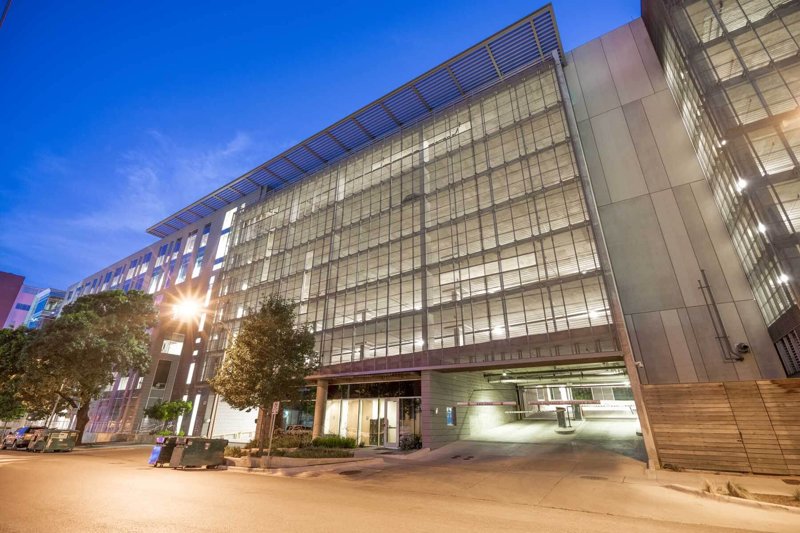

Projects

See how Corrugated panel size, orientation, finish, and geometry translate to built applications.

Downloads

Access technical product information, finish charts, and color guides for Corrugated zinc panels.
